GSI-B4 isolectin (Fragment)

Summary
Lectin Name Aliases
  • GS-I
  • GSL-I
  • GSL-I-B4
  • GSL-l B4
  • Griffonia Simplicifolia Lectin 1 Isolectin B4
Monosaccharide Specificities
  • Gal
  • GalNAc
Organism
Griffonia simplicifolia
UniProt
Q8W1R6
LfDB
UniLectin
Q8W1R6
CarboGrove
Annotation
Keyword
  • 3D-structure
  • Calcium
  • Lectin
  • Metal-binding
Gene Ontology (GO)
Displaying all 2 entries
GO Term
carbohydrate binding
metal ion binding
Annotation information from UniProt.
Reference
Displaying 1 entry
PubMed ID Title First Author
11287422 Isolation and characterization of major glycoproteins of pigeon egg white: ubiquitous presence of unique N-glycans containing Galalpha1-4Gal. Suzuki N
Lectin Frontier DataBase (LfDB)
GlyTouCan
G51497IR
V-V0
38.17
GlyTouCan
G88981LD
V-V0
14.04
GlyTouCan
G88981LD
V-V0
13.77
LfDB provides quantitative interaction data in terms of the affinity constants (Ka) of a series of lectins toward a panel of pyridylaminated (PA) glycans obtained by an automated frontal affinity chromatography with fluorescence detection (FAC-FD) system. Since the data are accurate and reliable, providing the absolute values of sugar-protein interactions, LfDB would be a valuable resource in the studies of glycan-related biology.
MCAW

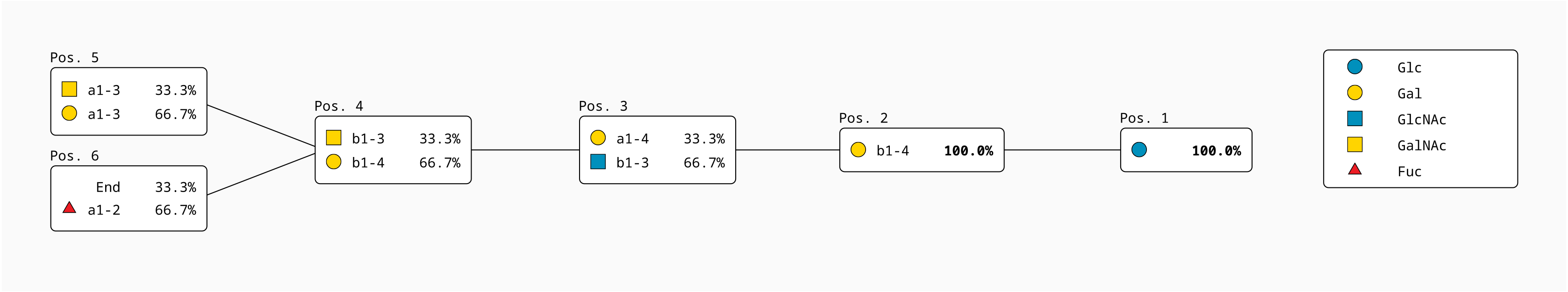

The MCAW profile of the top three glycans above, which resulted from FAC analysis.
UniLectin
UniProt
Q8W1R6
CarboGrove
Lectin Name
Griffonia Simplicifolia Lectin 1 Isolectin B4
Common Name
GSL-I-B4
Automated Analysis report (Top 10 high affinity glycans)
Array Source
CFG
Protein Source
Vector
Concentration (ug/mL)

GlyTouCan ID Binding Intensity Stdev
G17963KW
1107.53 50.81
G48898TH
401.57 51.13
G52724WY
365.61 37.31
G08176ZW
190.41 79.04
G05260RH
126.92 39.91
G17465IO
119.2 6.83
G19687OL
104.06 33.7
G17779DH
88.92 23.19
G35382VN
74.39 33.3
G11960UF
66.26 10.5

GlyTouCan ID Binding Intensity Stdev
G17963KW
5954.83 243.29
G52724WY
4505.19 271.75
G05260RH
3509 267.37
G08176ZW
2995.35 344.15
G48898TH
2733.37 318.86
G17465IO
2126.61 100.53
G34678QT
931.22 91.84
G03499BP
579.27 16.84
G79654JL
540.83 245.77
G47548GA
343.24 66.71

GlyTouCan ID Binding Intensity Stdev
G17963KW
21984.52 1706.94
G52724WY
21918.84 1617.39
G08176ZW
15075.49 706.78
G17465IO
13851.13 1019.46
G05260RH
13065.65 504.93
G48898TH
10968.55 787.25
G34678QT
10350.02 437.83
G04624DG
8480.33 1298.18
G03499BP
6068.33 143.76
G79654JL
5637.06 247.35

GlyTouCan ID Binding Intensity Stdev
G52724WY
30799.66 2028.28
G17963KW
28370.8 1312.42
G34678QT
26920.7 2157.75
G17465IO
25958.46 437.86
G05260RH
23970 685.3
G04026JU
23348.63 577.96
G04624DG
20567.03 3429.29
G08176ZW
19911.05 1820.76
G32889SE
17737.84 2866.51
G20744UW
16416.33 2417.8
CarboGrove View
Array Source
NCFG
Protein Source
Vector
Concentration (ug/mL)

GlyTouCan ID Binding Intensity Stdev
G52724WY
37334 1435
G17465IO
34206 4279
G19134QI
34077 4169
G05260RH
30944 3636
G48898TH
30843 3257
G08176ZW
27615 3194
G17963KW
22746 2313
G34678QT
15448 896
G04624DG
13260 637
G03499BP
11599 833

GlyTouCan ID Binding Intensity Stdev
G19134QI
46163 2549
G34678QT
43991 5717
G52724WY
39666 4009
G48898TH
38879 3213
G20744UW
37665 2458
G17963KW
34304 2476
G03499BP
33895 5205
G04624DG
33812 2118
G08176ZW
32614 3530
G34073UX
31191 3076
CarboGrove View
Array Source
NGGM
Protein Source
Vector
Concentration (ug/mL)

GlyTouCan ID Binding Intensity Stdev
G04156GK
1547 0
G65112QB
1023 0
G54079WP
873 0
G45869YW
672 0
G60395SO
586 0
G54585VU
575 0
G22270QF
399 0
G68856EP
360 0
G41865GQ
357 0
G06000DZ
274 0
CarboGrove View
Array Source
NGGM-TM
Protein Source
Vector
Concentration (ug/mL)

GlyTouCan ID Binding Intensity Stdev
G41865GQ
65392.5 136.38
G45869YW
65384.75 135.84
G68856EP
65381.75 59.23
G60395SO
65375.25 81.07
G04156GK
65355 117.04
G22270QF
65181 122.43
G65112QB
64692.75 478.33
G54585VU
64171.25 784.89
G54079WP
63957 1599.02
G55205ZV
62634.75 1581.54
CarboGrove View
Array Source
ZBiotech
Protein Source
Vector
Concentration (ug/mL)

GlyTouCan ID Binding Intensity Stdev
G02789DS
65484.17 0
G06873PC
65484.17 0
G94956AW
65481.83 0
G47548GA
64983.5 0
G31734OS
55493.33 0
G48740SL
43088.83 0
G88313DY
42459.67 0
G99454KR
31182.83 0
G06000DZ
5543.83 0
G21269SH
5209.83 0
CarboGrove View
Array Source
ZBiotech
Protein Source
Vector
Concentration (ug/mL)

GlyTouCan ID Binding Intensity Stdev
G21269SH
1852.5 178.19
G55205ZV
1103 261.63
G06557IC
453.25 126.22
G07982RO
342 39.6
G58612ZQ
203 89.1
G26934CO
118.5 65.76
G65609XC
64 4.24
G48646LG
52.5 2.12
G70323CJ
43.5 2.12
G25651TK
43.5 12.02
CarboGrove View
CarboGrove is populated with the results from 35 types of glycan arrays, 13 glycan families, 5 experimental methods, and 19 laboratories or companies by processing and interpreting data from various types of glycan arrays.
PDB
1GNZ
© PDBj クリエイティブ・コモンズ 表示 4.0 国際 ライセンス
1HQL
© PDBj クリエイティブ・コモンズ 表示 4.0 国際 ライセンス
